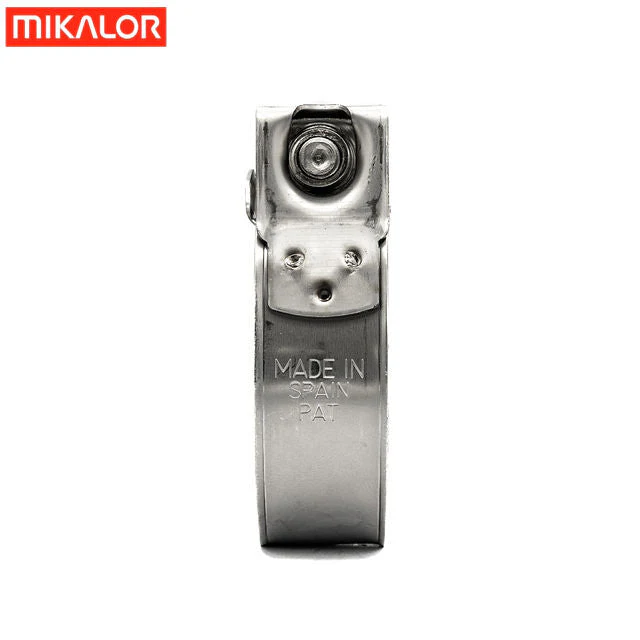

Supra Hose Clamp - Mikalor 23-25mm - 316 Stainless Steel
Description
The Supra W5 clamp complies fully with the RoHs directive EU 20032/95/EC. The Stainless Steel bolt together with the captive nut and spacer system allow for clamping the most demanding of hose assemblies. Supra W5 is a full stainless steel clamp, designed for marine environments where high corrosion resistance is vital.
Product Specifications
- Diameter Range (A) mm23.0 - 25.0
- Diameter Range (A) inch0.91 - 0.98
- Band Width (B) mm - inch18.0 - 0.71
- Band Thickness (C) mm - inch0.6 - 0.024
- Maximum Torque Setting Nm10.0
- Maximum Pressure bars45.0
- Screw mm A/F8.0
- Band/Housing Material W5 316SS
- Screw Material W5 316SS
- Brand Supra
- Manufactured By Mikalor
- Country of ManufactureSpain
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Swivel Bridge enables mounting without having to remove Hose
- Bevelled edges protect the hose from damage
- High Strength Bol & nut/spacer system
- Proven brand recognised worldwide
