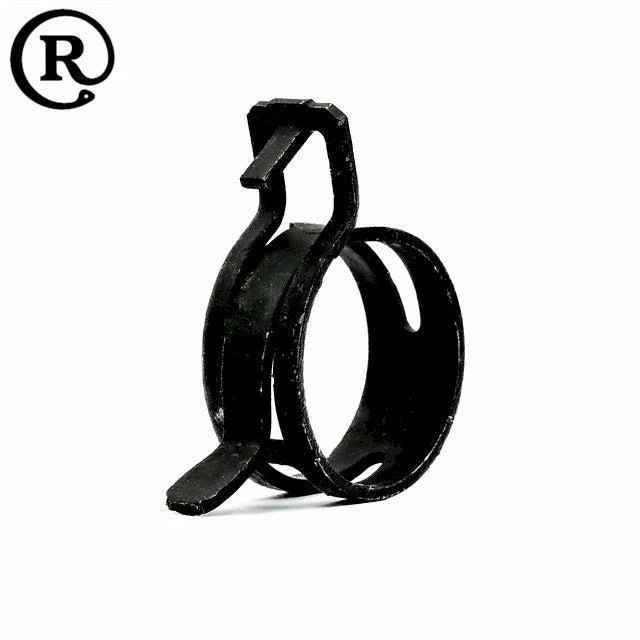

Spring Band Hose Clamp - Rotor - 43.5-53.0mm - Steel
Description
Rotor Spring Band Clamps are self-tensioning sealing components, which ensure a leak-free sealing of hose/spigot joints. Utilizing austempered, high-tensile chrome-vanadium spring steel, the final product indicates great flexibility and strength, ensuring a reliable, leak-proof connection of a hose to a fitting. Once the Rotor Hose clamp is installed on the hose joint, there will not be any need to re-torque or re-adjust the clamp over time (compared to a typical screw type clamp).
Downloads
Product Specifications
- Diameter Range (A) mm43.5 - 53.0
- Diameter Range (A) inch1.71 - 2.09
- Band Width (B) mm - inch15.0 - 0.59
- Band Thickness (C) mm - inch2.0 - 0.079
- Material SAE 1074 - material code ST
- Colour Black
- Brand CTB
- Manufactured byRotor Clip Inc.
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Self Tightening and Sealing
- Almost constant clamping force
- Adapt to changing characteristics of Hose
- Minimal Leak Path
Original: $1.76
-65%$1.76
$0.62More Images
