Smart Protector 300 - Cable Protector & Holder - PA12
Description
A range of polymer cable protectors for use in Downhole, subsea and flow line applications.
The Smart® Protector is a patented product developed in co-operation with Shell. It is designed to operate within restricted annular clearances, to accommodate various tubing diameters, all coupling types and most cable combinations.

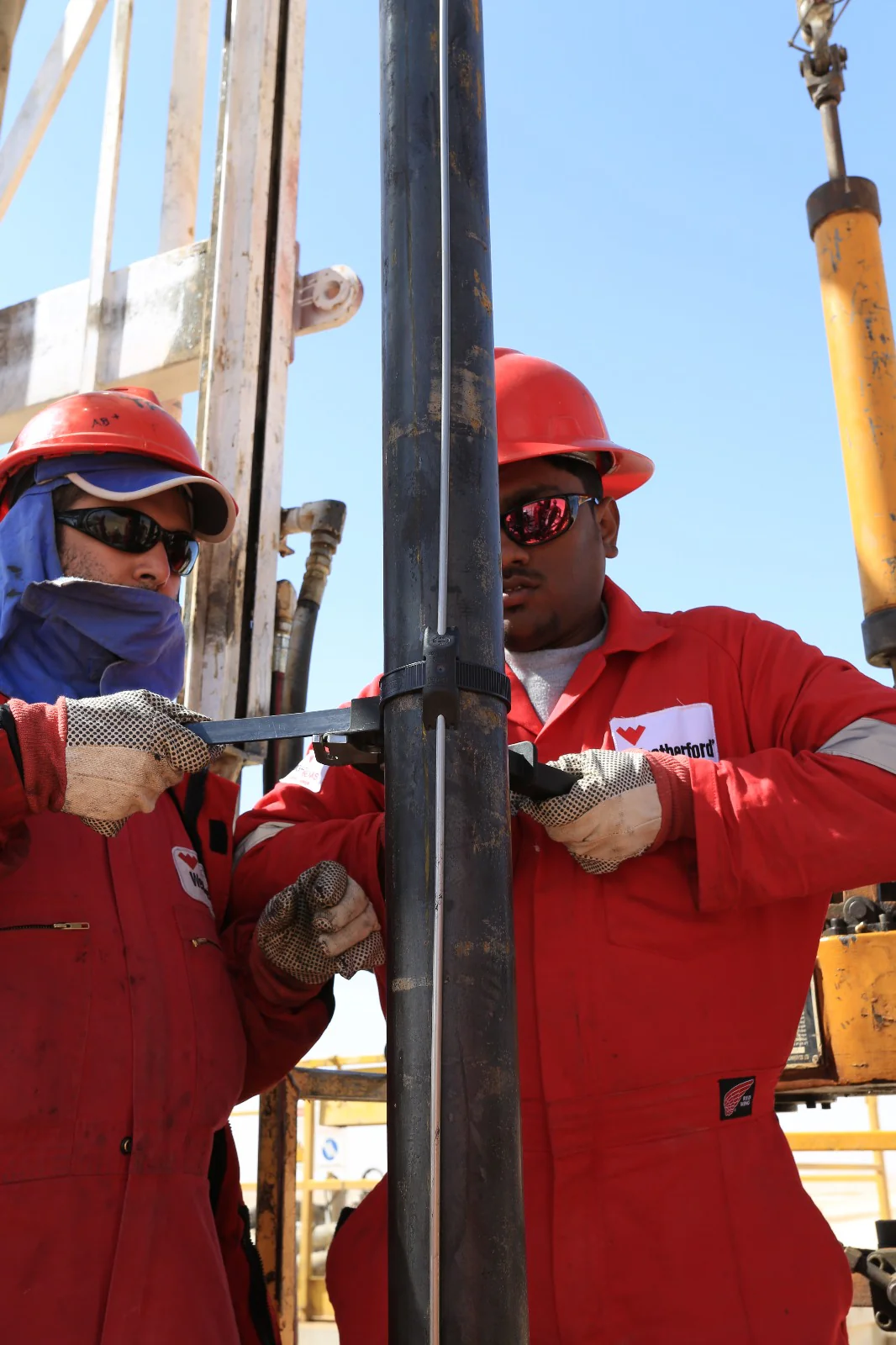

The Smart® Protector is not only used as a cable protector downhole it can be used to protect & attach cables in many other situations in conjunction with either the Smart® Band or Smart® Tie. One of the most successful applications is the attachment of Cathodic protection cables to Marine structures.
Cable Configuration
- Cable 11 or 2 x 11.0mm Square/round encapsulated lines
- Cable 21 or 2 x 1/4" Control Lines
Downloads
Product Specifications
- Protector Height mm - inch27.9 - 1.1
- Protector Length mm - inch159.0 - 6.28
- Protector Width mm - inch46.2 - 1.82
- Rotational Load kgf -lbf50.0 - 110.0
- Crush Load kgf -lbf2000.0 - 4400.0
- Max Temp Resistance °C - °F100 - 212
- Flammability RatingHB
- Tie Material PA12
- BrandHCL
- Country of Manufacture UK
- Hazardous GoodsNo
- RoHS CompliantYes
Features
- Fits any tubing diameter or coupling length
- Can be used for multi-line installations
- Prevents cable snagging
- Non-Corrosive
