Smart Protector 100 - Cable Protector & Holder - PA66
Description
A range of polymer cable protectors for use in Downhole, subsea and flow line applications.
The Smart® Protector is a patented product developed in co-operation with Shell. It is designed to operate within restricted annular clearances, to accommodate various tubing diameters, all coupling types and most cable combinations.

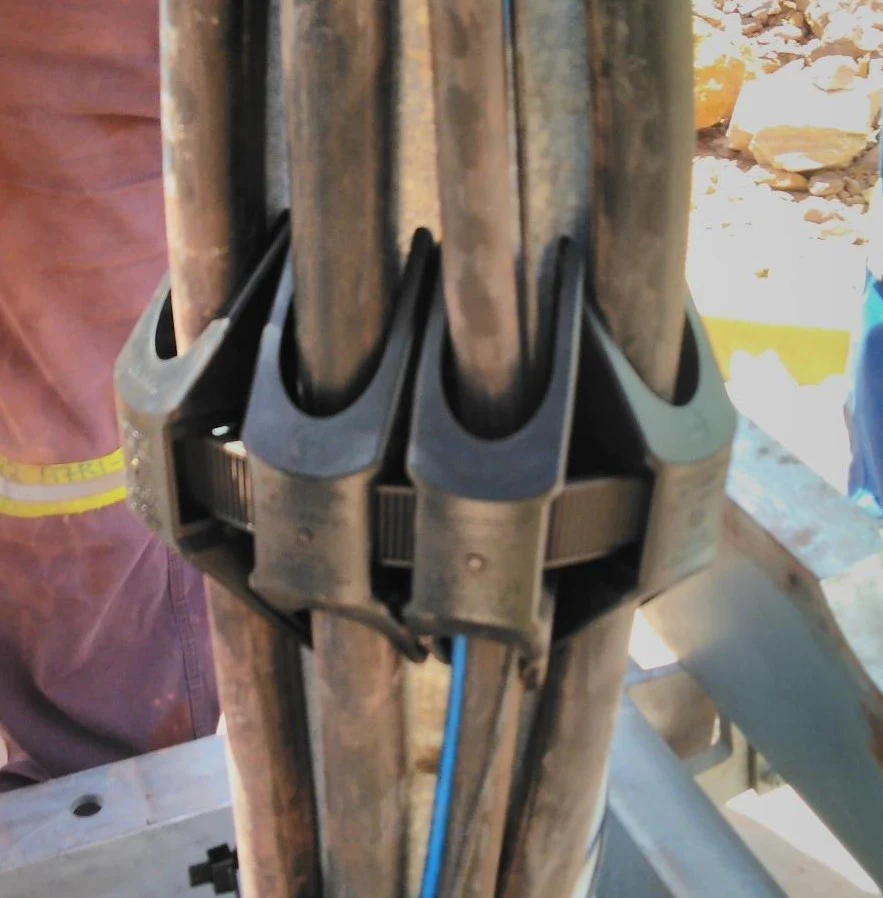

The Smart® Protector is not only used as a cable protector downhole it can be used to protect & attach cables in many other situations in conjunction with either the Smart® Band or Smart® Tie. One of the most successful applications is the attachment of Cathodic protection cables to Marine structures.
Cable Configuration
- Cable 17.0mm - 0.25in
- Cable 23.2mm - 0.13in
- Cable 32.0mmm - 0.79in
Downloads
Product Specifications
- Protector Height mm - inch19.5 - 0.77
- Protector Length mm - inch75.5 - 2.97
- Protector Width mm - inch25.0 - 0.98
- Woks with19mm BAND ONLY
- Rotational Load kgf -lbf50.0 - 110.0
- Crush Load kgf -lbf2000.0 - 4400.0
- Max Temp Resistance °C - °F125 - 257
- Flammability RatingV-2
- Tie Material PA66
- BrandHCL
- Country of Manufacture UK
- Hazardous GoodsNo
- RoHS CompliantYes
Features
- Fits any tubing diameter or coupling length
- Can be used for multi-line installations
- Prevents cable snagging
- Non-Corrosive
