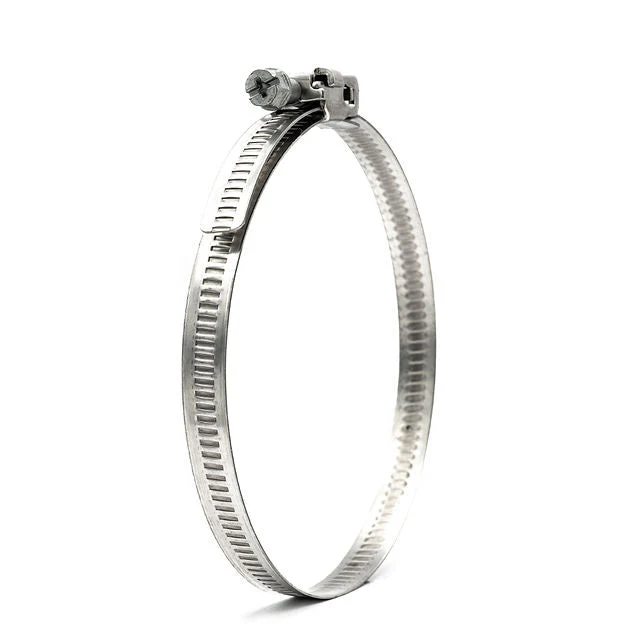

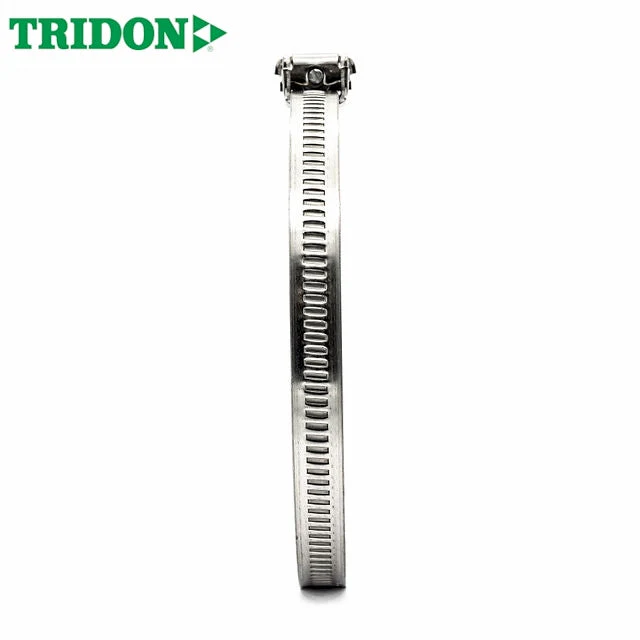

Quick Release Hose Clamp - 9mm Wide - 304SS - 25-200mm
Description
HCL's Quick Release Worm Drive hose clamps offer a tilting Worm Drive housing. These quick release hose clamps are ideal for rapid application and removal, especially for large diameter pipes and hoses. Often used in the HVAC industry to attach flexible ducting. Quick Release Hose Clamps come in 9mm or 12mm band width. The 304 Stainless Steel version offers increased corrosion protection.
Downloads
Product Specifications
- Diameter Range (A) mm25.0 - 200.0
- Diameter Range (A) inch0.98 - 7.87
- Band Width (B) mm - inch9.0 - 0.35
- Band Thickness (C) mm - inch0.6- 0.024
- Max Tightening Torque (Nm)4.0
- Screw mm A/F 7.0
- Band/Housing MaterialW4 304SS
- Screw Material W4 304SS
- Hazardous GoodsNo
- RoHS CompliantYes
Features
- Continuously Threaded Band
- Large Diameter range
- Releasable and Reusable
