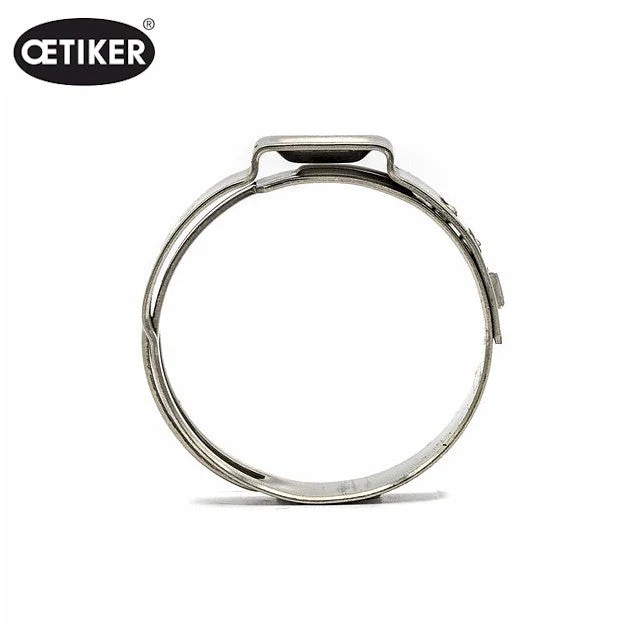

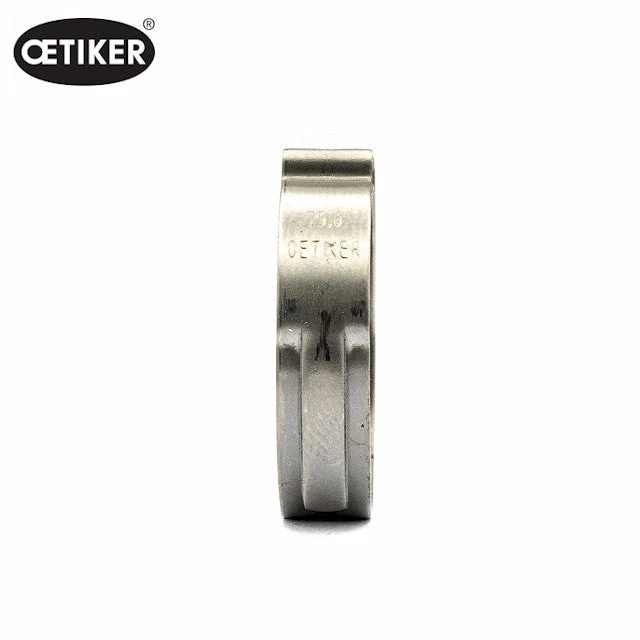

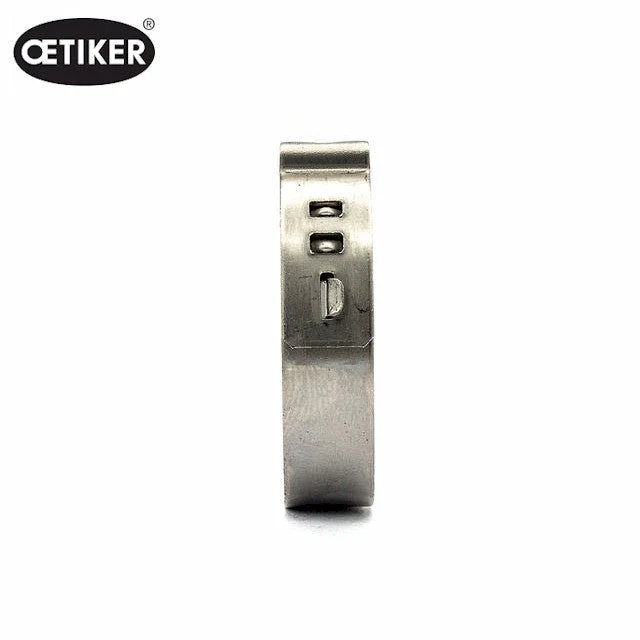

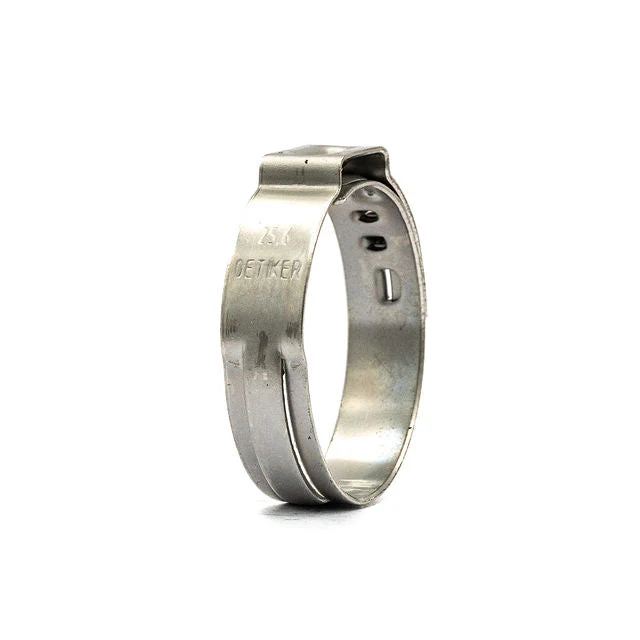

Oetiker Stepless Ear Clamp-W:5mm-Dia 7.3-9.1mm 304SS
Description
The Oetiker Stepless narrow band concentrates the transmission of clamping force into a uniform compression and surface pressure. The clamp ear compensates for component intolerances with adjustable surface pressure whilst the dimple increases the clamping force with a spring-effect compensating for changes in diameter caused by thermal expansion. The specially formed strip edges reduce risk of damage to clamped parts.
Video
Downloads
Product Specifications
- Minimum Diameter (A) mm - inch7.3 - 0.29
- Maximum Diameter (A) mm - inch8.7 - 0.36
- Band Width (B) mm - inch5.0 - 0.20
- Band Thickness (C) mm - inch0.5 - 0.02
- Band Material 304 Stainless Steel
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Manufactured to DIN3017 Standard
- Smooth Underside
- Bevelled Edges Protect Hose
- Exclusive Housing Design
Original: $0.70
-66%$0.70
$0.24More Images
