Oetiker 304 SS Adjustable Ear Clamp - W: 7mm - Dia-54-120mm Rounded
Description
Oetiker©159 Series Adjustable Ear Clamps are manufactured in 304 SS and its choice of engagement positions enable the Oetiker clamp to be adjusted to several nominal diameters. The Multi-position interlock consists of one or two load retaining hooks that enable the ear clamp to withstand tensile loading during closure and a lock tab designed to hold the hooks in their windows prior to closure. Often used for CV Boot Joints.
Video
Downloads
Product Specifications
- Diameter Range (A) mm54.0 - 120.0
- Band Width (B) mm - inch7.0 - 0.28
- Band Thickness (C)mm - inch0.6 - 0.024
- Material W4 Stainless Steel AISI 304
- Manufactured byOetiker
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Choice of engagement positions: clamp can be adjusted to several nominal diameters
- Inner ring with radial guidance: effective and powerful all-round sealing

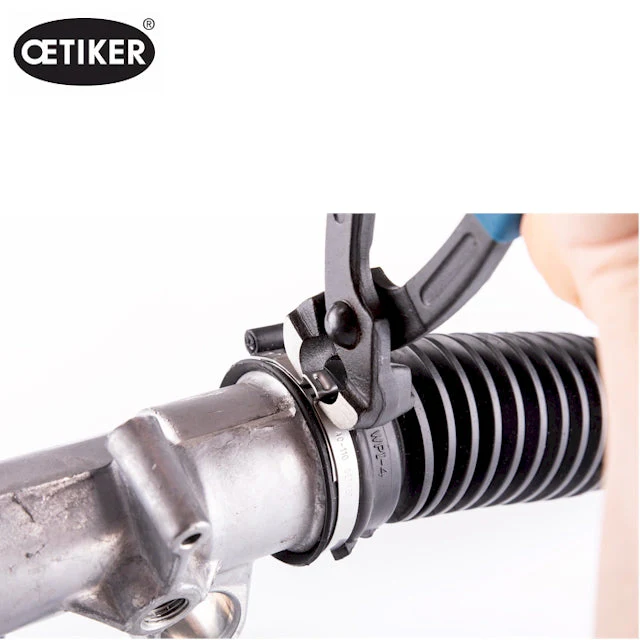

- Clamp ear: simple and fast installation, visible deformation provides evidence of proper closure
- Burr-free strip edges: reduced risk of damage to parts being clamped
More Images
Oetiker 304 SS Adjustable Ear Clamp - W: 7mm - Dia-54-120mm Rounded
Description
Oetiker©159 Series Adjustable Ear Clamps are manufactured in 304 SS and its choice of engagement positions enable the Oetiker clamp to be adjusted to several nominal diameters. The Multi-position interlock consists of one or two load retaining hooks that enable the ear clamp to withstand tensile loading during closure and a lock tab designed to hold the hooks in their windows prior to closure. Often used for CV Boot Joints.
Video
Downloads
Product Specifications
- Diameter Range (A) mm54.0 - 120.0
- Band Width (B) mm - inch7.0 - 0.28
- Band Thickness (C)mm - inch0.6 - 0.024
- Material W4 Stainless Steel AISI 304
- Manufactured byOetiker
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Choice of engagement positions: clamp can be adjusted to several nominal diameters
- Inner ring with radial guidance: effective and powerful all-round sealing
- Clamp ear: simple and fast installation, visible deformation provides evidence of proper closure
- Burr-free strip edges: reduced risk of damage to parts being clamped
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Description
Oetiker©159 Series Adjustable Ear Clamps are manufactured in 304 SS and its choice of engagement positions enable the Oetiker clamp to be adjusted to several nominal diameters. The Multi-position interlock consists of one or two load retaining hooks that enable the ear clamp to withstand tensile loading during closure and a lock tab designed to hold the hooks in their windows prior to closure. Often used for CV Boot Joints.
Video
Downloads
Product Specifications
- Diameter Range (A) mm54.0 - 120.0
- Band Width (B) mm - inch7.0 - 0.28
- Band Thickness (C)mm - inch0.6 - 0.024
- Material W4 Stainless Steel AISI 304
- Manufactured byOetiker
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Choice of engagement positions: clamp can be adjusted to several nominal diameters
- Inner ring with radial guidance: effective and powerful all-round sealing
- Clamp ear: simple and fast installation, visible deformation provides evidence of proper closure
- Burr-free strip edges: reduced risk of damage to parts being clamped
