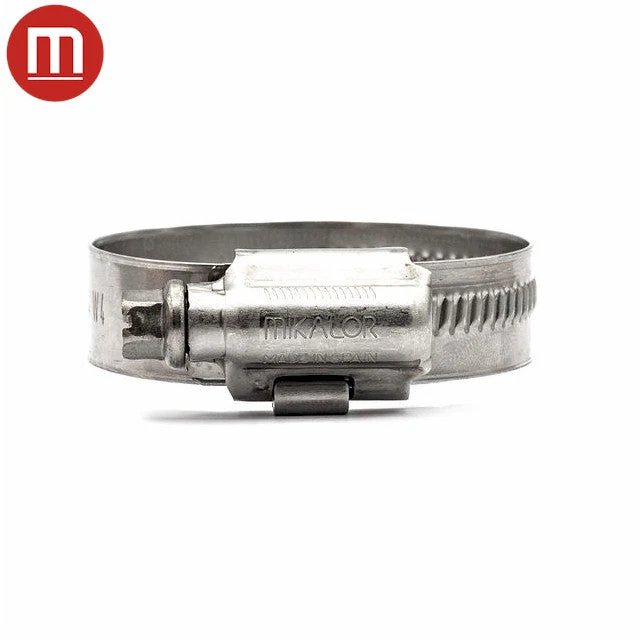

Mikalor ASFA High Torque Clamp W4 - 95-118mm
Description
Mikalor High-Torque Clamps were designed to guarantee maximum performance in the most demanding applications. Thanks to the use of an M8 screw and the choice of 16mm bandwidth, torque values can be applied which are far higher than those used with the standard ASFA range, thereby ensuring perfect performance in high-pressure applications.
The High-Torque clamp is particularly popular in industrial and automotive applications due to its outstanding performance. The perfectly rounded bevelled band edges avoid the clamp cutting into or damaging the hose.
Product Specifications
- Diameter Range (A) mm95.0 - 118.0
- Diameter Range (A) inch3.74 - 4.65
- Band Width (B) mm - inch16 - 0.63
- Band Thickness (C) mm - inch0.95 - 0.037
- Max Torque (Nm) - 12
- Max Torque (Bars) - 17
- Band/Housing Material W4 304SS
- Bolt Material W4 304SS
- Manufactured By Mikalor
- Hazardous Goods No
- RoHS Compliant Yes
Features
- High Torque
- Non-Perforated Band
