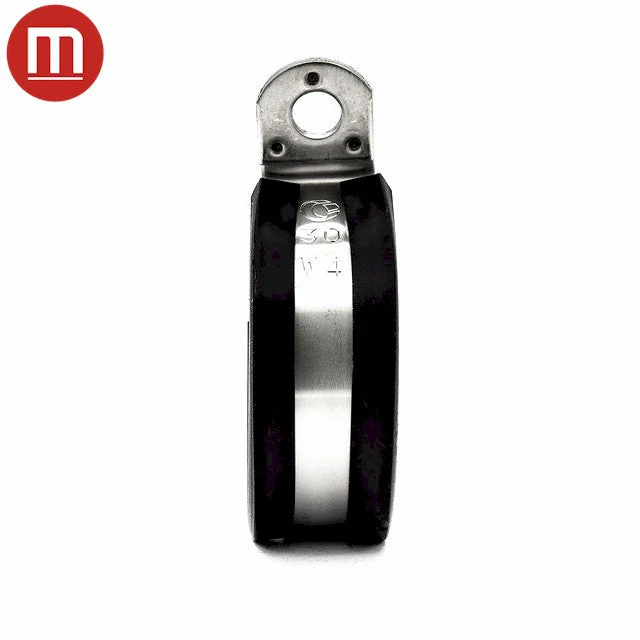

Metal P Clip (Rubber Lined) - Max Dia-34mm - Width-15mm
Description
HCL's Zinc Plated Steel Rubber lined P clips have an elastomer sheathing that absorbs jolts and vibrations, preventing damage to cables and hoses; and also acts as an excellent electrical insulator. The PK series Rubber lined P Clip is manufactured in accordance with DIN3016, incorporating a reinforced fastening hole and is made from Zinc Plated Steel.
Product Specifications
- Max diameter (A) mm - inch34 - 1.34
- Offset distance (B) mm - inch26.7 - 1.05
- Hole diameter (C) mm - inch6.4 - 0.25
- Band Thickness (F) mm - inch0.8 - 0.03
- Rubber width (E) mm -inch18.0 - 0.71
- Manufactured According toDIN3016
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Rubber Lining prevents damage to hoses
- Reinforced fastening hole
- Corrosion resistant
More Images
Metal P Clip (Rubber Lined) - Max Dia-34mm - Width-15mm
Description
HCL's Zinc Plated Steel Rubber lined P clips have an elastomer sheathing that absorbs jolts and vibrations, preventing damage to cables and hoses; and also acts as an excellent electrical insulator. The PK series Rubber lined P Clip is manufactured in accordance with DIN3016, incorporating a reinforced fastening hole and is made from Zinc Plated Steel.
Product Specifications
- Max diameter (A) mm - inch34 - 1.34
- Offset distance (B) mm - inch26.7 - 1.05
- Hole diameter (C) mm - inch6.4 - 0.25
- Band Thickness (F) mm - inch0.8 - 0.03
- Rubber width (E) mm -inch18.0 - 0.71
- Manufactured According toDIN3016
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Rubber Lining prevents damage to hoses
- Reinforced fastening hole
- Corrosion resistant
