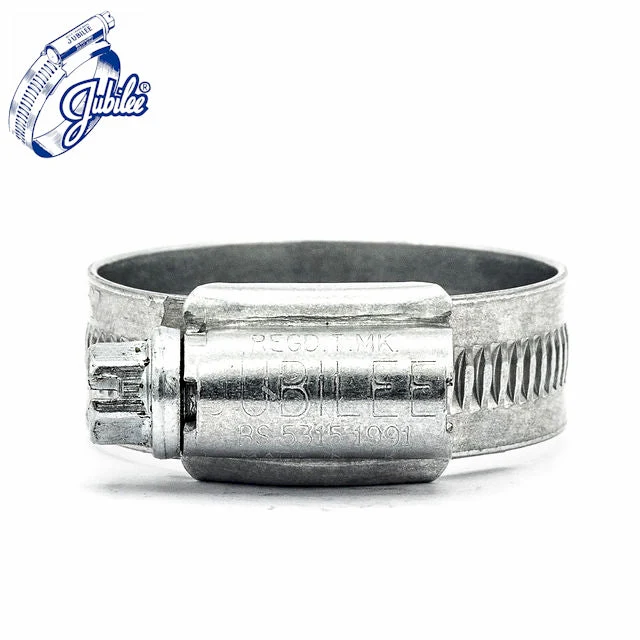

Jubilee Original Hose Clip - 286-318mm - Zinc Plated Steel
Description
The original Jubilee© Clip, the product that started it all! For the vast majority of applications this sturdy worm drive hose clip is more than suitable. Available as a mild steel zinc protected clamp; this product also has a band that is continuously threaded enabling extra flexibility when adjusting the clip to the correct size. The smooth inside profile of the band and rolled edges give protection for all types of hoses including soft hoses made from rubber or silicone. All our original Jubilee© Clips are independently tested by the British Standards Institute (BSi) and carry the British Standard Kitemark, which is universally regarded as the most stringent standard there is for a hose clip.
Product Specifications
- Diameter Range (A) mm286.0 - 318.0
- Diameter Range (A) inch11.26 - 12.52
- Band Width (B) mm - inch13.0 - 0.51
- Band Thickness (C) mm - inch0.91 - 0.04
- Max torque4.5Nm
- Max pressure203Bar
- Band/Housing/Screw MaterialW1 Mild Zinc Plated Steel
- Corrosion resistance240 hours NSS Test
- BrandJubilee
- Manufactured according toBS5315
- Country of ManufactureUnited Kingdom
- Manufactured byL Robinson Ltd
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Manufactured to British Standard
- Carry BS Kitemark
- The Original Worm Drive Hose Clamp
