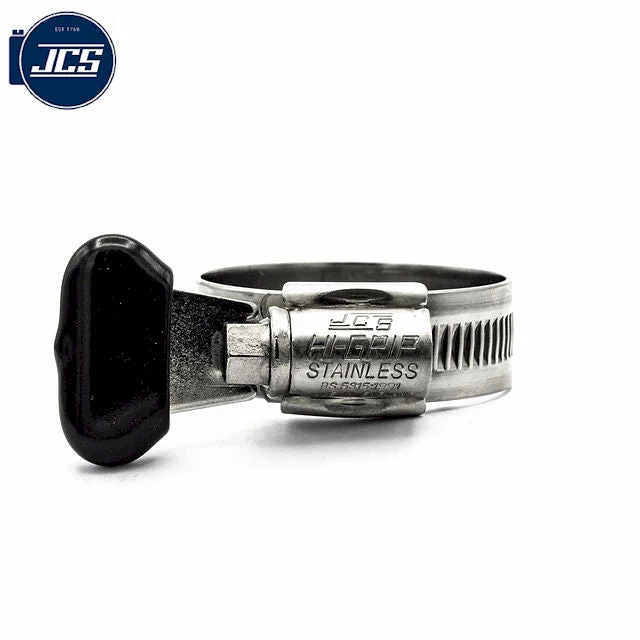

JCS Hi-Grip Worm Drive WING - 11-16mm - 304 Stainless Steel
Description
Specifically designed for frequently removed hoses, the unique dovetail locking and side lugs of the wing plate ensure excellent sealing and longevity. The soft plastic wing plate cover is kinder to unprotected fingers.
JCS Hi-Grip general purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, have BSI Kitemark and NATO approval, and exceeds all operational requirements of the relevant DIN and SAE standards.
Standard (W1) Hose clips are used for a wide variety of domestic, automotive and industrial applications, the standard Hi-Grip hose clip is made from heavily zinc plated mild steel with additional protection from a passivation layer.
Video
Downloads
Product Specifications
- Diameter Range (A) mm11.0 - 16.0
- Diameter Range (A) inch0.43 - 0.63
- Band Width (B) mm - inch9.0 - 0.35
- Band Thickness (C) mm - inch9.0 - 0.028
- Torque Setting Nm – lb inch3 - 26
- Screw mm A/F7.0
- Band/Housing Material Stainless 304
- Brand Hi-Grip
- Manufactured By JCS
- Manufactured according to BS5315
- Country of ManufactureUnited Kingdom
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Bevelled Edges Protect Hose
- Exceeds BS5315
Original: $2.09
-65%$2.09
$0.73More Images
