Ezybond Earth Clamp - 22mm Pipe - 2.5-6 mm Cable
Description
Manufactured by HCL, the Ezybond® Earth clamp conforms to BS951-2009. It is quick and easy to assemble, with an innovative design, including a double grip jaw, conductor guide vanes and security locking tabs. Manufactured in Nylon 6.6, it also has excellent mechanical, chemical, heat resistant and self extinguishing properties. The Ezybond is the perfect Earth Bond Clamping solution.
Downloads
Product Specifications

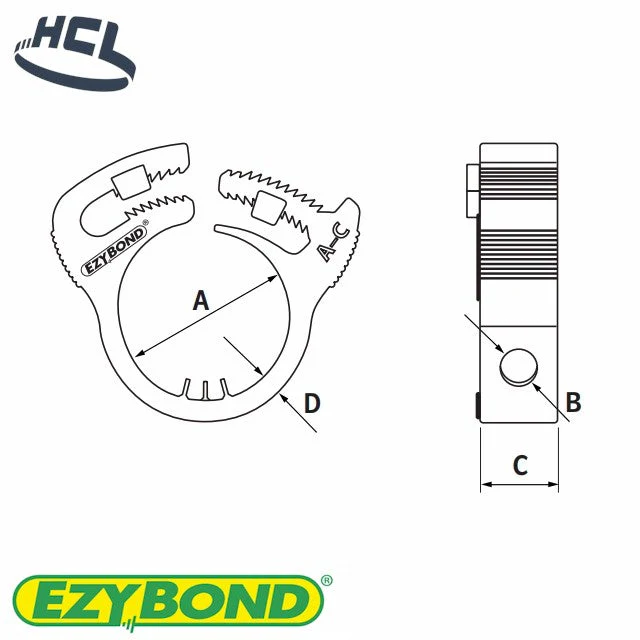

- Pipe diameter (A) mm22.0
- Conductor Size (B)A-B (2.5-6.0mm²)
- Band Width (C) mm12.9
- Band Thickness (D) mm3.3
- ColourBlack
- Clamp MaterialNylon 6.6
- Flammability UL 94 V-2
- Max long term operating temp125°C - 255°F
- Max peak operating temp170°C - 340°F
- Brand Ezybond
- Manufactured By HCL Fasteners
- Country of ManufactureUnited Kingdom
- Hazardous Goods No
- RoHS Compliant Yes
Features
- More than halves installation time
- Continuous uniform metal contact
- No screws or loose parts
- ASTA approved electrical tests to BSI951:2009
- Increased Security
- Cross-bonding becomes a simple operation with continuous uniform contact
- Always correct size for pipe fitted
- Manufactured according to ISO 9001-2015
- Corrosion resistant – can be used in damp environments
