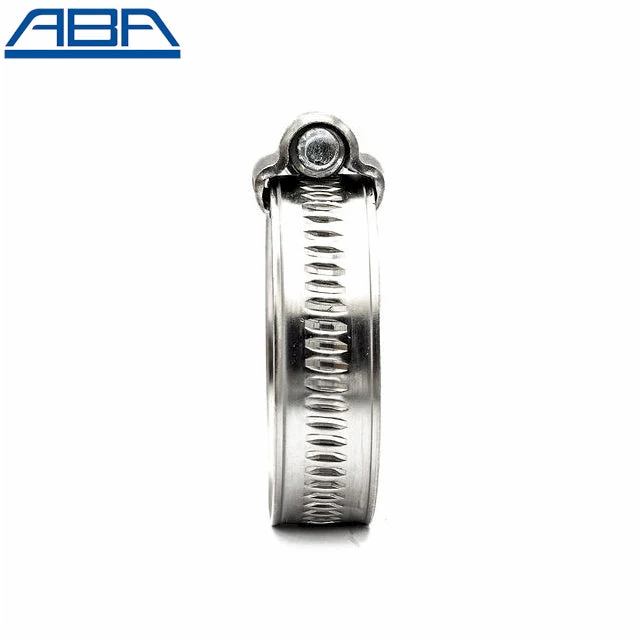

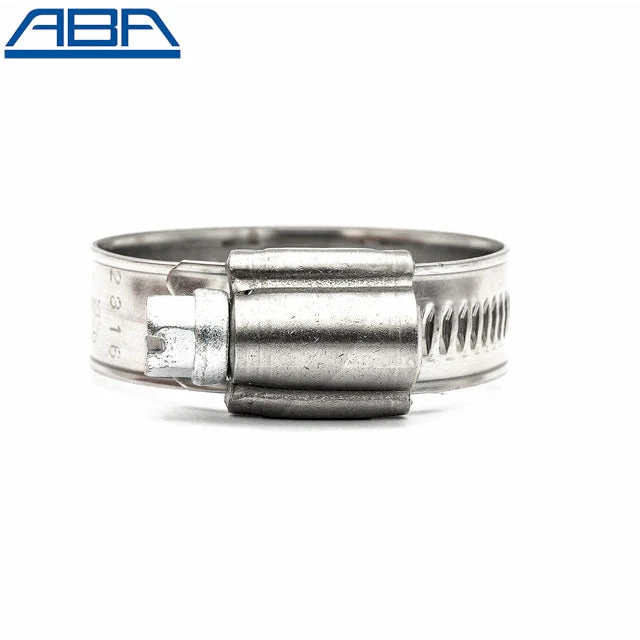

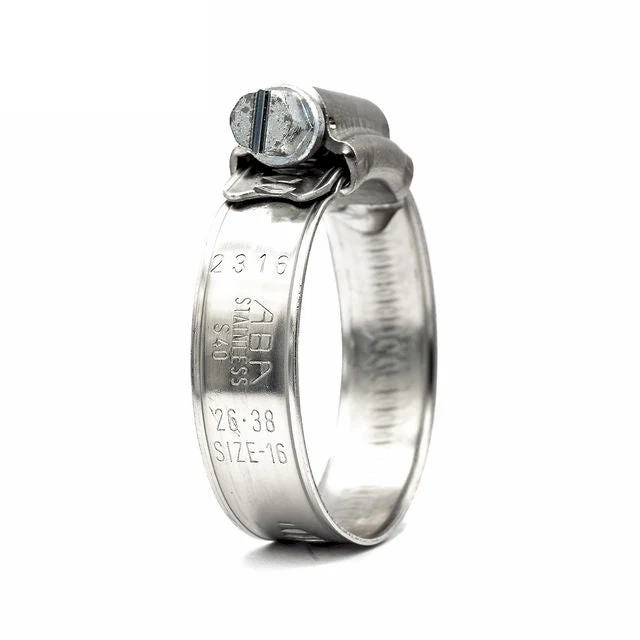

ABA Original Worm Drive Clamp 12mm W5 316SS - 77-95mm
Description
ABA Original clamps feature an extra strong one-piece pressed housing, rolled-up band edges and a smooth band underside that protects the hose. ABA Original – the trouble-free clamp with high tightening force and high breaking torque.
ABA Original Acid-Resistant S50 parts are made of SS 2343/AISI 316 stainless steel which is the natural choice for applications where premium corrosion resistance is required
Downloads
Product Specifications
- Diameter Range (A) mm77.0 - 95.0
- Diameter Range (A) inch3.03 - 3.74
- Band Width (B) mm - inch12.0 - 0.47
- Band Thickness (C) mm - inch0.80 - 0.032
- Max Head Width mm - inch17.0 - 0.670
- Band/Housing Material W5 316SS
- Bolt Material W5 316SS
- Manufactured By ABA
Features
- Extra strong one-piece pressed housing
- Rolled-up band edges
- Smooth band underside protects the hose
- High clamping force
- High breaking torque
- Every clamp is date stamped for traceability
- Aluzink gives better corrosion resistance than normal W1 Clamps
Original: $8.74
-65%$8.74
$3.06More Images
