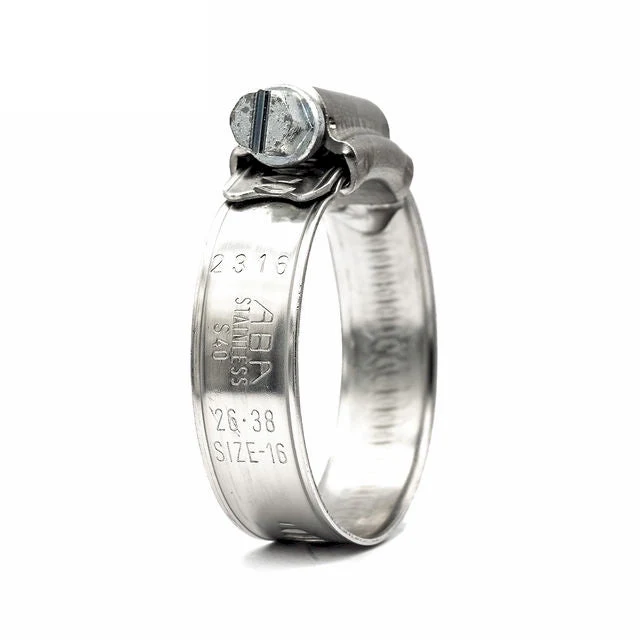

ABA Original Worm Drive Clamp 12mm W4 304SS - 26-38mm

ABA Original Worm Drive Clamp 12mm W4 304SS - 26-38mm

Description

ABA Original clamps feature an extra strong one-piece pressed housing, rolled-up band edges and a smooth band underside that protects the hose. ABA Original – the trouble-free clamp with high tightening force and high breaking torque.

ABA Original Stainless S40 parts are made of SS 2333/AISI 304 stainless steel

Downloads

Product Specifications

  • Diameter Range (A) mm26.0 - 38.0
  • Diameter Range (A) inch1.02 - 1.50
  • Band Width (B) mm - inch12.0 - 0.47
  • Band Thickness (C) mm - inch0.80 - 0.032
  • Max Head Width mm - inch17.0 - 0.670
  • Band/Housing Material W4 304SS
  • Bolt Material W4 304SS
  • Manufactured By ABA

Features

  • Extra strong one-piece pressed housing
  • Rolled-up band edges
  • Smooth band underside protects the hose
  • High clamping force
  • High breaking torque
  • Every clamp is date stamped for traceability
  • Aluzink gives better corrosion resistance than normal W1 Clamps
$1.17

Original: $3.34

-65%
ABA Original Worm Drive Clamp 12mm W4 304SS - 26-38mm—

$3.34

$1.17

More Images

ABA Original Worm Drive Clamp 12mm W4 304SS - 26-38mm - Image 2
ABA Original Worm Drive Clamp 12mm W4 304SS - 26-38mm - Image 3
ABA Original Worm Drive Clamp 12mm W4 304SS - 26-38mm - Image 4

ABA Original Worm Drive Clamp 12mm W4 304SS - 26-38mm

Description

ABA Original clamps feature an extra strong one-piece pressed housing, rolled-up band edges and a smooth band underside that protects the hose. ABA Original – the trouble-free clamp with high tightening force and high breaking torque.

ABA Original Stainless S40 parts are made of SS 2333/AISI 304 stainless steel

Downloads

Product Specifications

  • Diameter Range (A) mm26.0 - 38.0
  • Diameter Range (A) inch1.02 - 1.50
  • Band Width (B) mm - inch12.0 - 0.47
  • Band Thickness (C) mm - inch0.80 - 0.032
  • Max Head Width mm - inch17.0 - 0.670
  • Band/Housing Material W4 304SS
  • Bolt Material W4 304SS
  • Manufactured By ABA

Features

  • Extra strong one-piece pressed housing
  • Rolled-up band edges
  • Smooth band underside protects the hose
  • High clamping force
  • High breaking torque
  • Every clamp is date stamped for traceability
  • Aluzink gives better corrosion resistance than normal W1 Clamps
