ABA Mini Hose Clamp W4 304SS Dia 13mm
HomeStore

ABA Mini Hose Clamp W4 304SS Dia 13mm

ABA Mini Hose Clamp W4 304SS Dia 13mm

Description

ABA Mini Standard clamp is particularly suitable for use on small, thin-walled hoses. This little clamp provides an excellent clamping force well over screwless clamps.

ABA Mini cross slot screw permits use of various installation tools

Downloads

Product Specifications

  • Optimal Diameter mm13.0
  • Optimal Diameter inch0.51
  • Band Width (B) mm - inch9.0 - 0.35
  • Band Thickness (C) mm - inch0.70 - 0.028
  • Band/Housing Material W4 304SS
  • Bolt Material W4 304SS
  • Manufactured By ABA

Features

  • Rolled up band edges
  • Band tongue that fits under the hose is profiled for added strength
  • Hexagonal head can be tightened with a flexible socket
  • Nut is retained even if the screw is removed
  • Highly suited to thin-walled hoses
  • Good corrosion resistance
$0.45

Original: $1.28

-65%
ABA Mini Hose Clamp W4 304SS Dia 13mm—

$1.28

$0.45

More Images

ABA Mini Hose Clamp W4 304SS Dia 13mm - Image 2

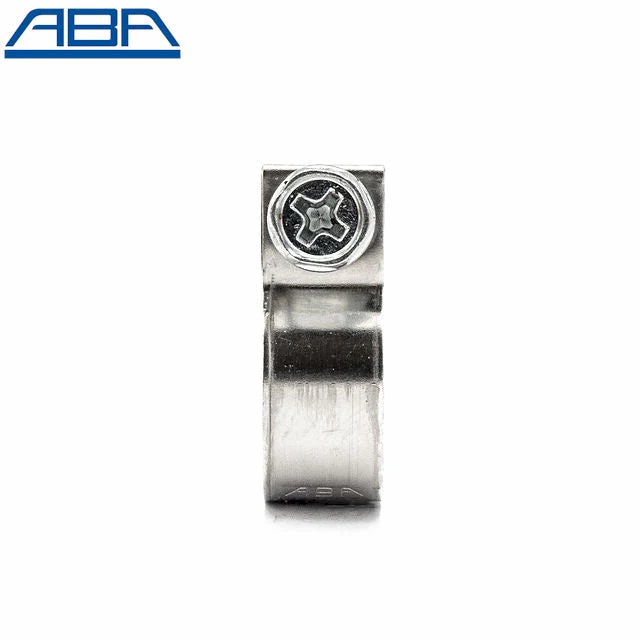

ABA Mini Hose Clamp W4 304SS Dia 13mm - Image 3

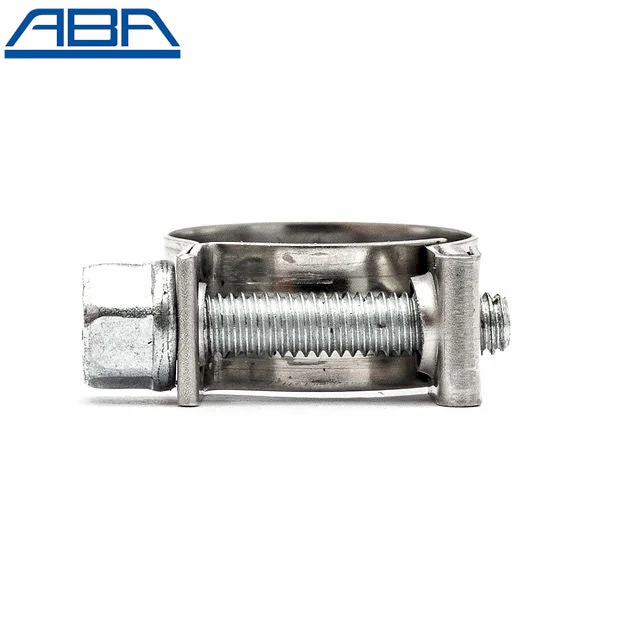

ABA Mini Hose Clamp W4 304SS Dia 13mm - Image 4

ABA Mini Hose Clamp W4 304SS Dia 13mm

Description

ABA Mini Standard clamp is particularly suitable for use on small, thin-walled hoses. This little clamp provides an excellent clamping force well over screwless clamps.

ABA Mini cross slot screw permits use of various installation tools

Downloads

Product Specifications

  • Optimal Diameter mm13.0
  • Optimal Diameter inch0.51
  • Band Width (B) mm - inch9.0 - 0.35
  • Band Thickness (C) mm - inch0.70 - 0.028
  • Band/Housing Material W4 304SS
  • Bolt Material W4 304SS
  • Manufactured By ABA

Features

  • Rolled up band edges
  • Band tongue that fits under the hose is profiled for added strength
  • Hexagonal head can be tightened with a flexible socket
  • Nut is retained even if the screw is removed
  • Highly suited to thin-walled hoses
  • Good corrosion resistance
